Description

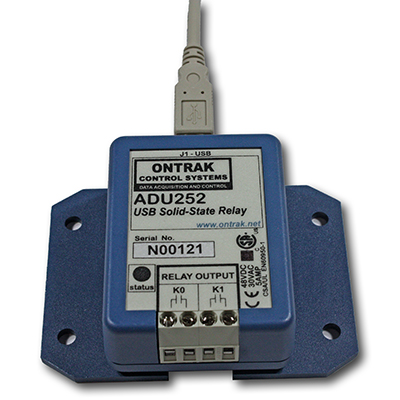

The ADU252 USB Solid-State Relay Interface allows control of 2 PhotoMOS SSR outputs via a USB port.
High quality PhotoMOS solid-state relays (Panasonic AQZ202G) switch AC or DC loads.
Suitable for 5V, 12V, 24V or 48V control applications.
This USB Solid-State Relay Interface is easy to use with VB, VB.NET, C,
Python, MATLAB, LABView etc. via standard HID drivers included with Windows.
A mini-driver (DLL) is also provided allowing control using standard ASCII commands using familiar readfile, writefile commands.
The ADU252 includes a 10' USB cableand a flange mount enclosure. An optional DIN rail version is available.
Download the ADU 252 User Manual
Download
ADU252 3D STEP files for FLANGE or DIN mounting types.
Key Features
- Bus Powered, No external power supply required.
- 2, N. O. PhotoMOS SSR outputs rated 5.0A @ 30VAC, 5.0A @ 48VDC
- CSA/UL Approved, CE Marked
- High Retention USB connector.
- High quality PhotoMOS relays switch AC or DC loads.
- Bi-colour LED status indicator.
- High quality cage-clamp type terminal blocks.
- Uses standard HID drivers included with Windows
- Mini-driver (DLL) provided for use with VB,VC, LabVIEW and TestPoint
- Programming examples and sample code included for VB, Visual C++
- Meets IEC61000-4-2 ESD protection for USB port.
- Available as standard flange mount or optional DIN rail mount.
Typical Applications
- PC/USB to PLC Interface
- USB Stacklight Controller
- Security/Access Systems
- Point-of-Sale Auxillary I/O
- SCADA Systems
- Kiosk Automation
- OEM Instruments Embedded Control
- Parking Gate Control
- HVAC/Building Control
Technical Specification
Supply Voltage
NONE (Bus Powered)
Supply Current (Relays De-energized)
12mA Typical 15mA Max
Supply Current (All Relays Energized)
40mA Typical 50mA Max
Operating Temperature
0-50C
Type
PhotoMOS - Normally Open
AC Ratings
5.0 Amps @ 30VAC MAX
DC Ratings
5.0 Amps @ 48VDC MAX
On-state Resistance Typical
15 mOhm
On-State Resistance Maximum
30 mOhm
Maximum Operating Speed
1CPS at full load
Isolation Voltage
2500Vrms
Safety Approvals
UL, CSA (CUS)
Pricing
IMPORTANT: Specify mounting option when ordering. -FLANGE or -DIN (optional). See Mounting Options for details.
Mounting Options
