avr8000 rs232 8:1 video multiplexer / video switch



AVR8000 RS232 8:1 Video Multiplexer / Video Switch   ( Dimensions,  6.7" X 3.4" X 1.3" )

The AVR8000, RS232 based, 8:1 Video Multiplexer / Video Switch  allows switching of up to eight video sources to one monitor, VCR, or video capture card.  The video multiplexer was designed for use in Point-Of-Sale systems and is suitable for security and industrial monitoring applications. The solid-state switching circuits feature buffered inputs and output, ultra-low switching transient ( 10mV p-p ), and ESD protection on all connections.  Contact inputs for motion detectors or external manual switch allow manual video switch control ( no host computer ) or switching based on motion detection. Timed switching mode allows scanning of inputs with user set dwell time.

Click here to download USER MANUAL for AVR8000 ( PDF, 685K )

Overview of Modes of Operation

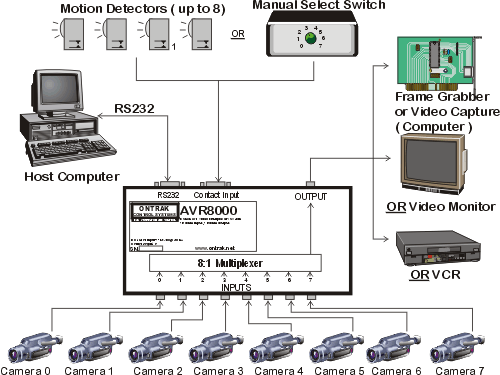

MODE1:  Motion Input / Manual Switching:      Mode 1 allows the use of an external switch ( not provided ) to select which input is routed to the output. Motion detector outputs of cameras can also be used for switching.There are eight contact inputs on the AVR8000 video multiplexer  which allow the use of cameras equipped with motion detectors to be used to determine which channel is routed to the output. A host computer is not required but may be used to monitor motion and/or video signals.  Video output can then be routed to a VCR, video monitor or video capture card.

MODE2:  RS232 Controlled Switching:      Mode 2 allows full control of switching via an RS232 connection. Simple ASCII commands allow channel selection, and also, monitoring of the eight contact inputs.   Software interrupts may be enabled to notify host of contact input ( motion ) status changes.  Video output can then be routed to a VCR, video monitor or video capture card.

MODE3: Timed Switching :    Mode 3 enables switching of channels based on time intervals set by the host computer. Dwell time is set from 1 to 255 seconds. Video output can then be routed to a VCR, video monitor or video capture card.

Key Features, AVR8000 RS232 8:1 Video Multiplexer / Video Switch

  • Low Cost ( $199,  Qty 1 )
  • 8 Buffered Inputs, Buffered Output
  • 75 Ohm (standard ) or 50 Ohm inputs
  • Ultra-Low 10mV p-p Switching Transient
  • Integrated ESD protection on all inputs and outputs.
  • 8 Contact inputs for motion detection or external channel select switch.
  • Versatile command set via RS232
  • Manual, Motion,  Host ( RS232 ),  or Timed Control Modes.
  • 94V-0 Enclosure with rubber mounting feet.
  • Operates on standard 9VDC wall adapter or 7 -15 VDC
  • RS232 cable included.

Specifications, AVR8000 RS232 8:1 Video Multiplexer / Video Switch

AVR8000
Video Inputs ( 8 )
Input Impedance 75 Ohm,  ( 50 Ohm Available )
Input Level 1Vp-p
Input Voltage Range +/-2V
Connetor Type RCA
Video Output
Output Impedance 75 Ohm, ( 50 Ohm Available )
Output Level 1Vp-p into 75 Ohms
Switch Transient 10mV p-p MAX
Bandwidth (-3dB ) 70Mhz
Connector Type RCA
Contact Inputs ( 8 )
Input Type Dry Contact or TTL
Connector Type DB9 Female
Serial Port
Type RS232  9600 Baud ( 56K Baud Available )
Connector Type DB9 Female
Power and Operating Conditions
Supply Voltage 9 - 15VDC via Wall Adapter
Supply Current 40mA Typical  60mA Max
Operating Temperature 0-50C



Pricing,  AVR8000 RS232 8:1 Video Multiplexer / Video Switch

( Includes RS232 cable )

Description $US
AVR8000 $199.00
ADRPWR $12.95
