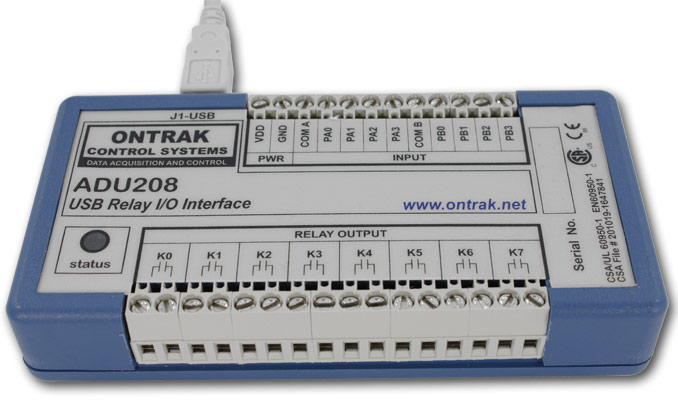

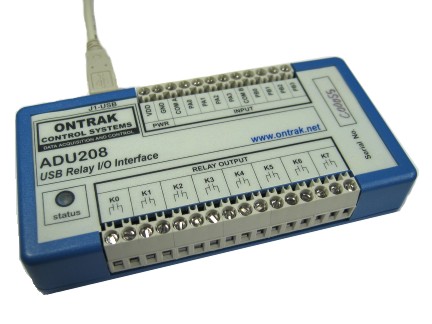

ADU208 USB Relay I/O Interface ( Dimensions,
5.1" X 2.8 X 1.0" )
The ADU208 USB Relay I/O Interface allows control of 8 relay
contact outputs, 8 contact or TTL inputs, and 8 event counters via a USB port.
The ADU208 can effectively convert a standard PC to a powerful PLC (
programmable logic controller ). High quality PA-Series relays from Aromat offer superior
performance. This low-cost serial relay contact interface is easy to use with VB,
VB.NET, and Visual C++ via standard HID drivers included with Windows 98,2000,XP. A
mini-driver ( DLL )* is also provided allowing control using standard ASCII commands using
familiar readfile , writefile commands. The ADU208 includes a 10' USB cable and is
available as a PCB or in an enclosure with several mounting options.
Click here to downoad ADU208 USER
MANUAL in PDF Format ( 700K)
* View AduHid.dll on-line software develoment kit ( SDK ) on
our Programming page.
Key Benefits, ADU208 USB Relay I/O Interface
- Provides a standard PC with PLC ( programmable logic controller )
functions.
- Low-cost .
- Bus Powered, No external power supply required.
- 8, N. O. relay contact outputs rated 5.0A @ 120VAC, 5.0A @
30VDC
- CSA/UL Approved, CE Marked
- High quality Aromat PA-series relays offer superior performance.
- 8 Digital inputs suitable for contact or TTL Input , also
accept up to 24VDC
- Inputs feature optical isolation to 3500V ( 500V channel to channel )
- Programmable watchdog functions.
- Bi-colour LED status indicator.
- Self-resetting, fused 5V output
- High quality cage-clamp type terminal blocks.
- Uses standard HID drivers included with Windows 98SE,2000,XP
- Mini-driver ( DLL ) provided for use with VB,VC, LabVIEW and
TestPoint
- Programming examples and sample code included for VB, Visual C++
- Eight, 16-bit event counters
- Programmable debounce setting for event counters.
- No power supply required.
- Meets IEC61000-4-2 ESD protection for USB port.
- Available in enclosure or as PCB only.
Specifications, ADU208 USB Relay I/O
Interface
|
ADU208 |
| Supply Voltage |
NONE ( Bus Powered ) |
| Supply Current ( Relays De-energized ) Supply Current ( All Relays Energized ) |
12mA Typical 15mA Max 165mA Typical 180mA Max |
| Operating Temperature |
0-50C |
| Contact Outputs ( 8) |
|
| Type |
Normally Open |
| AC Ratings |
5.0 Amps @ 120VAC MAX |
| DC Ratings |
5.0 Amps @ 30VDC MAX |
| Relay Approvals |
UL, CSA,TUV |
| Digital Inputs (8) ( TTL or
Contact Input ) |
|
| Vin HIGH ( MAX ) |
28VDC |
| Vin HIGH ( MIN ) |
2.0VDC |
| Vin LOW ( MAX ) |
0.7 VDC |
| Vin LOW ( MIN ) |
0VDC |
| Event Counter ( 8 ) |
|
| Resolution |
16-bit |
| Input Type |
Contact, TTL Voltage or up to 24VDC |
| Input Z |
2700 ohms |
| Max Frequency |
1Khz |
| Programmable De-bounce |
10ms, 1ms, 100us, NONE |
| Special Functions |
|
| Mounting Options |
Desktop, Velcro, Flange, DIN Rail |
Pricing, ADU208 USB Relay I/O Interface
( Includes 10' USB cable )
| Description |
$US |
| ADU208 |
$189.00 |
| ADU208 QTY 5-9 |
$176.00 |
| ADU208 QTY 10+ |
$169.00 |
IMPORTANT: Specify mounting option when ordering.

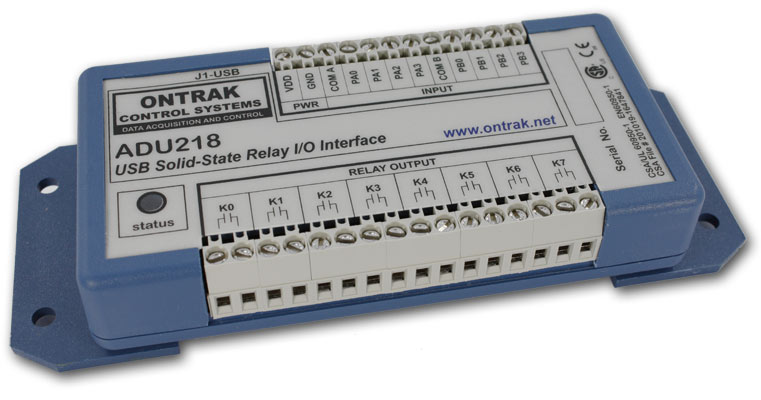

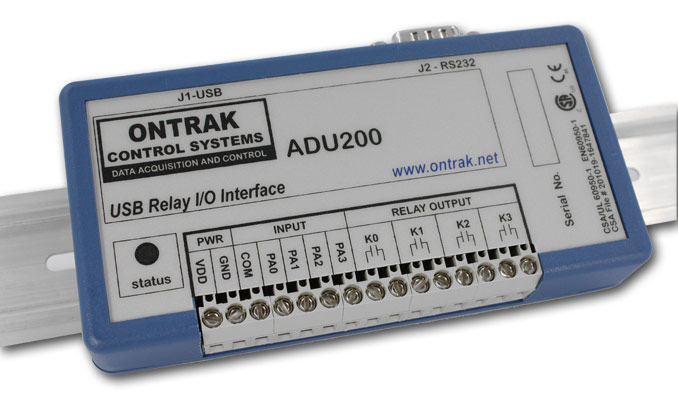

Options include the following; DESKTOP (Standard ) -VELCRO, -FLANGE or
-DIN .
See
Mounting Options for details.
Example 1: ADU200-DIN Example
: 2 ADU218-FLANGE
ADU products do not ship with drivers on floppy or CD-ROM. Drivers,
including complete SDK can be downloaded or viewed on-line in the
Programming Section.
Pricing indicated is for ADU208 USB interface in enclosure and
includes rubber feet for desktop use. Contact Ontrak for available options.
